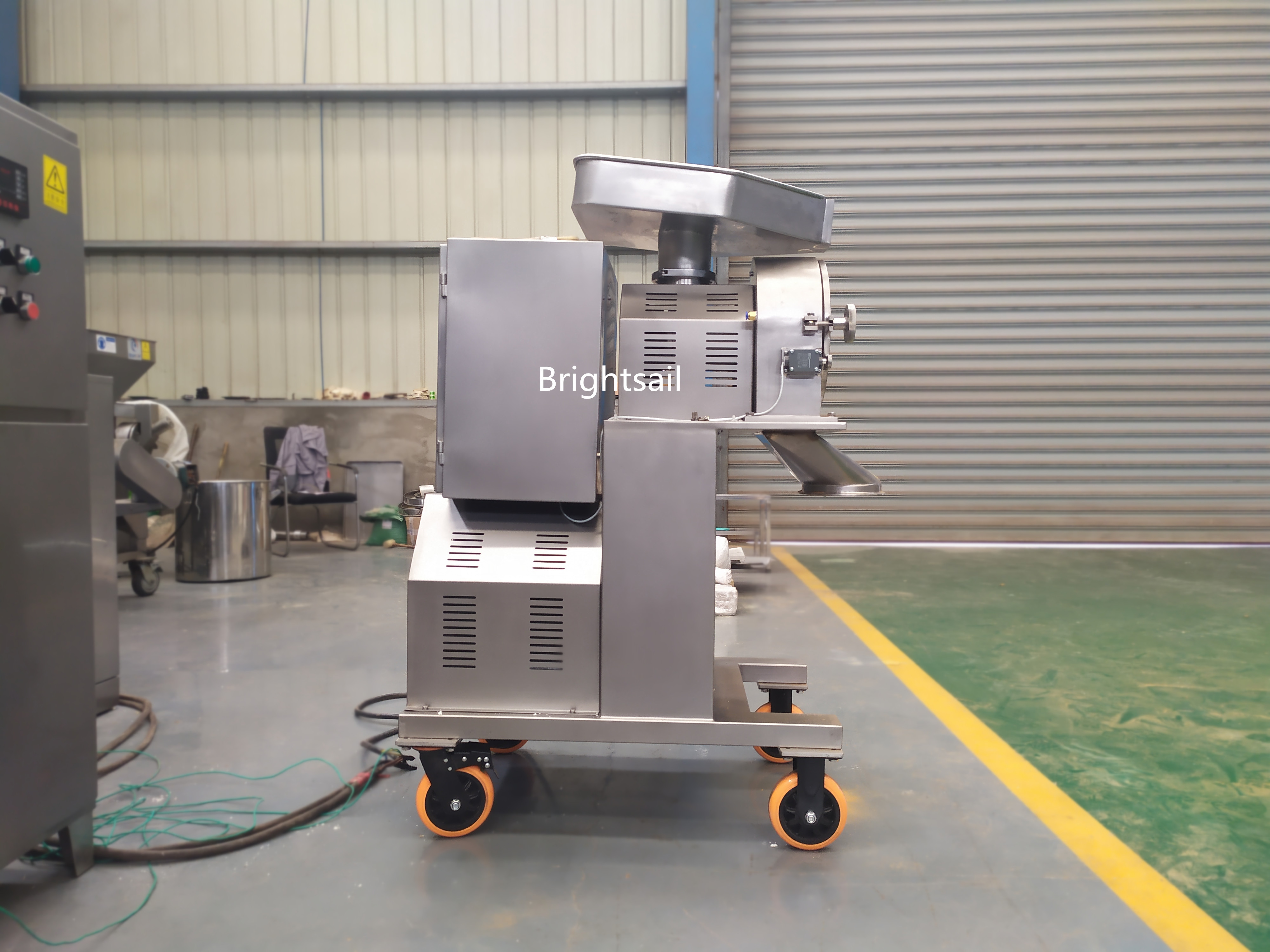

Seaweed Grinding Machine
.jpg)
|
Model |
BS-180 |
BS-250 |
BS-350 |
|
Feed size (mm) |
< 10 (granule) < 15*40*2 (leaf) |
||
|
Grind fineness (mesh) |
10-120 |
10-120 |
10-120 |
|
Capacity(kg/hr) |
3-50 |
10-100 |
30-300 |
|
Grind chamber diameter(mm) |
200 |
270 |
380 |
|
Rotor speed (rpm) |
5900/8600 |
4200/6200 |
2200/4400 |
|
Motor (kw) |
2.2 |
5.5 |
11 |
|
Overall size (mm) |
840*470*1020 |
930*600*1200 |
1150*700*1600 |
|
Weight(kg) |
~112 |
~210 |
~430 |
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
|
Technical data: Model |
BSP-250 |
BSP-350 |
BSP-450 |
BSP-500 |
BSP-750 |
BSP-900 |
BSP-1000 |
|
Capacity (kg/h) |
10-100 |
20-200 |
40-500 |
50-800 |
120-1800 |
800-2500 |
1000-3600 |
|
Input size (mm) |
＜ 8 |
＜ 15 |
＜ 15 |
＜ 15 |
＜ 15 |
＜20 |
＜20 |
|
Powder fineness (mesh) |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
|
Crush motor (kw) |
5.5 |
15 |
18.5 |
30 |
55 |
90 |
110 |
|
Classifier motor (kw) |
1.5 |
1.5 |
4 |
5.5 |
11 |
15 |
18.5 |
|
Blower (kw) |
4 |
5.5 |
11 |
18.5 |
37 |
45 |
75 |
|
Feed motor (kw) |
0.37 |
0.55 |
0.55 |
1.1 |
1.5 |
2.2 |
2.2 |
|
Discharge motor (kw) |
0.75 |
0.75 |
0.75 |
1.1 |
1.5 |
1.5 |
1.5 |
|
Speed of principle axis (rpm) |
~8400 |
~6500 |
~5600 |
~4400 |
~3100 |
~2450 |
~2450 |
|
Grading impeller speed (rpm) |
~4000 |
~4000 |
~4000 |
~3500 |
~3000 |
~3000 |
~3000 |
Jiangyin Brightsail machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Q: Can I see the Seaweed Grinding Machine working in user’s factory?
A: It depends, you shall contact our sales to check.
And most companies don’t allow strangers to visit their factory.Only a few allow,so please contact our sales to check whether it is possible.
Q: Does the Seaweed Grinding Machine have FDA certificate?
A: Our machine can meet the requirements of FDA, but our machine is not food or pharmaceutical products, our machine doesn’t have FDA certificate.
But our machine can be applied in food and pharmaceutical’s production, we a lot of customers who are using our machine to produce food, or pharmaceutical products.
Q: Will the machine explode while working?
A: Usually, no. If the powder is explosive or your local agency has specific requests, please contact us, we can provide anti-explosion solutions for your machine.
This is our BS-180 Seaweed hammer mill grinding test seaweed powder
it can make 12~120 mesh powder
In the video is our BSP-350 Seaweed Grinding Machine ,
Its powder can reach more than 200 mesh
